Products / offshore

A flexible pipe penetration sealing system for single or multiple metallic and GRP pipe applications, providing fire protection in A60 to H120 and uninsulated A0 and H0 bulkheads and decks. The system will reduce vibration, stress and cathodic corrosion and is age tested to prove 50 years of sealing protection. It is also proven to provide a blast rating and fire protection during a 2 hour jet fire test and will ensure watertight integrity even after exposure to a 1 hour (A60) fire.


Benefits
• Simplified design through standardisation of all bulkhead penetrations and a significant reduction in components
• Allows design changes without the need for additional hotwork
• Space reduction
• Faster installation
• Allows for misalignment of pipe work due to build tolerances
• Significant reduction in number of pipe spools
• Vibration stress and cathodic corrosion reduced increasing the life of pipe systems and reducing the failure rate
• Easy replacement of pipe systems
• Vibration & noise reduction - reducing noise signature
• Significant weight saving over bulkhead fittings making more energy efficient

Improved survivability
• Certified for use in A60 boundaries (A60 - min length 180mm), tested & approved without any insulation for A0 applications, (A0 - min length 250mm)
• Proven watertight even after A60 fire test
• 2 hour hydrocarbon fire test - both with and without insulation, rated H0 and H120
• 2 hour Jet Fire test - with no additional insulation
• Shock tested to 850g to DEF STAN 08-120 including post test pressure test to 6.9 bar
• Blast rated
• Low Smoke and Toxicity - DEF STAN 02-711 and DEF STAN 02-713

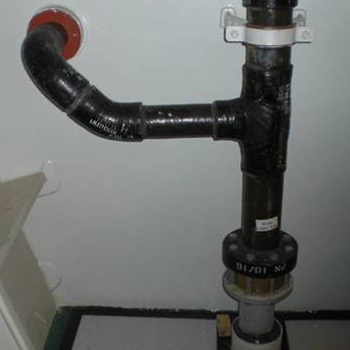

Provides fire protection and maintains watertight and gastight integrity of bulkheads and decks when plastic pipes need to pass through. The system can also be used to pass plastic pipes together with cables and metallic pipes through the same penetration.


Benefits
• Simplified design through standardisation of all bulkhead penetrations and a significant reduction in components​
• Faster installation
• Can be a combined penetration with plastic pipes, metal and cables

Improved survivability
• Marine Equipment Directive (MED) Type Approved
• Certified for use in A60 boundaries
• Proven watertight even after A60 fire test
• Low Smoke and Toxicity - DEF STAN 02-711 and DEF STAN 02-713

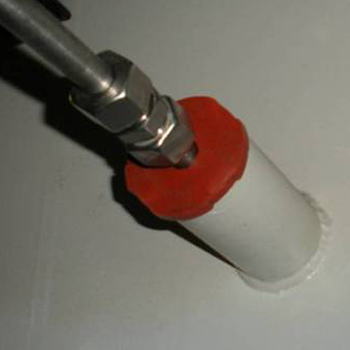

Simple and effective system installed in minutes and best suited to single pipe penetrations up to 114.3mm (4”) in diameter and for applications where metallic or plastic pipes pass through A0 and A60 bulkheads and decks. The Dynatite version of the system is suitable for situations in which a sudden pressure exposure will occur, for example in blast walls or ammunition stores.

Benefits
• Allows the shortest possible conduit length for fire rated penetrations
• Can be used for all types of metallic and plastic pipes
• Can be installed within minutes
• Does not require boiling or any other mechanical fixing
• Low maintenance
• Can be exposed to high pressure loads directly after installation
• Tested under severe condition, suitable for wide ranging industries and for use in the harshest environments

Improved survivability
• Certified for use in A60 boundaries tested and approved without any insulation for A0 applications
• Marine Equipment Directive (MED) Type Approved
• Lloyds Register Witnessed - 2.5 bar pressure test
• TNO Laboratory - Age Testing to 50 years
• Low Smoke and Toxicity - DEF STAN 02-711 and DEF STAN 02-713

IP68 rated protection for electrical cabinets, enclosed and junction boxes. An effective multi-gland system for sealing cables and pipes entering cabinets, enclosures or junction boxes. Cet-A-Sil sealing plugs are used in a HMPE gland body to provide an IP68 rated seal protecting against water, dust and gas ingress that is also rodent proof. The system allows flexibility for multiple cable or pipe diameters and allowances for future cables can be built in. During maintenance, cables or pipes are easily removed and the seal is reinstated on completion.

Benefits
• IP68
• 4 metre head of water
•  Simple push-fit installation
• Controlled compression - preventing damage to cable

These Glands are used primarily as weather deck penetrations for naval ships operating in extremely harsh marine environments around the world. They can be used with either SLIPSIL or Dynatite sealing plugs to provide a certified fire, water and gastight rating. The glands can also be supplied in a version for areas requiring EMC protection.
